CMD Fabrication
MT PreRunner Kit 2019-2025
MT PreRunner Kit 2019-2025
Couldn't load pickup availability

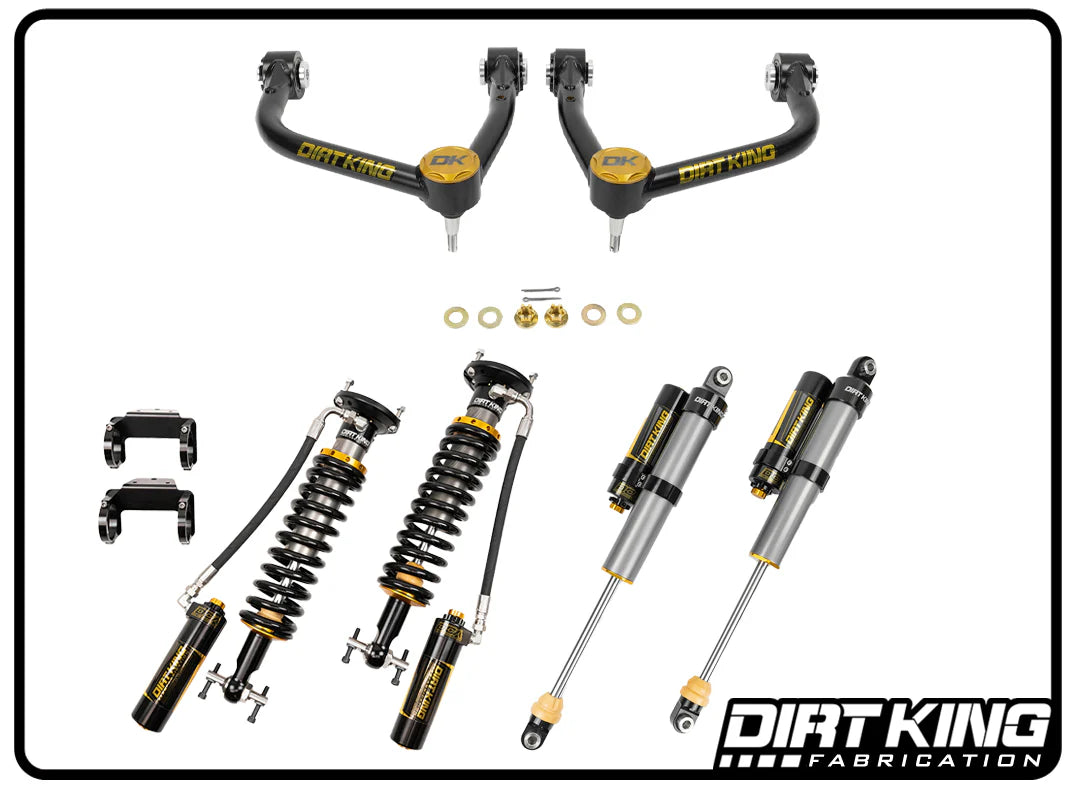

Transform your GM 1500 by eliminating front-end rake and achieving a leveled lift with the Dirt King Prerunner Kit. This package includes Dirt King's 4130 Upper Control Arms, 2.5 DCA Front Coilovers, and 2.5 DCA Rear Shocks—all expertly tuned for off-road capability while not compromising on-road comfort. Equipped with high-speed and low-speed compression adjusters, these shocks offer the flexibility to fine-tune ride quality across any terrain or driving style. It's the perfect choice for those looking to enhance their vehicle's off-road performance and ride quality.
Front Lift Height
• Standard Models:
○ Out of the Box: Provides 3" of lift (levels vehicle).
○ Max Recommended Setting: Up to 3.5" of lift.
• Trail Boss / ZR2 / AT4 / AT4X Models:
○ Out of the Box: Provides 1.5" of lift.
○ Max Recommended Setting: 1.5" of lift (Do not exceed to maintain ride quality)
Rear Lift Height
• Standard Models:
○ Out of the Box: Factory height is retained.
○ Maximum Recommended Lift Block: 1.5" (Lift blocks not included)
• Trail Boss / ZR2 / AT4 / AT4X Models:
○ Included: Package includes 1.5" rear lift blocks to replace the factory 2" blocks.
○ Benefit: Levels the vehicle and optimizes ride quality.
Additional Specifications
• Track Width: Stock
• Maximum Backspacing: 4.75"
• Minimum Rim Size: 17"
• Shock Bodies: 2.5" hard-anodized 6061 aluminum
• Shock Shafts: Induction-hardened 7/8"
• Dirt King 4130 Chromoly Upper Control Arms

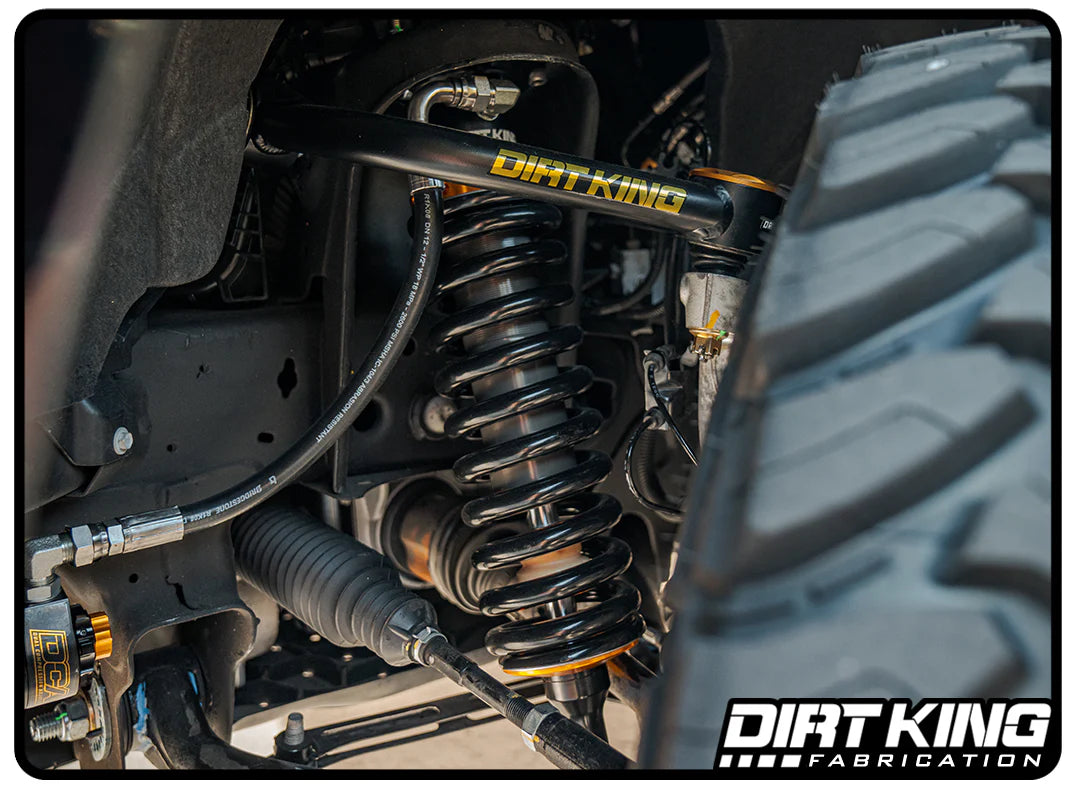

• Dirt King 2.5 DCA Front Coilovers

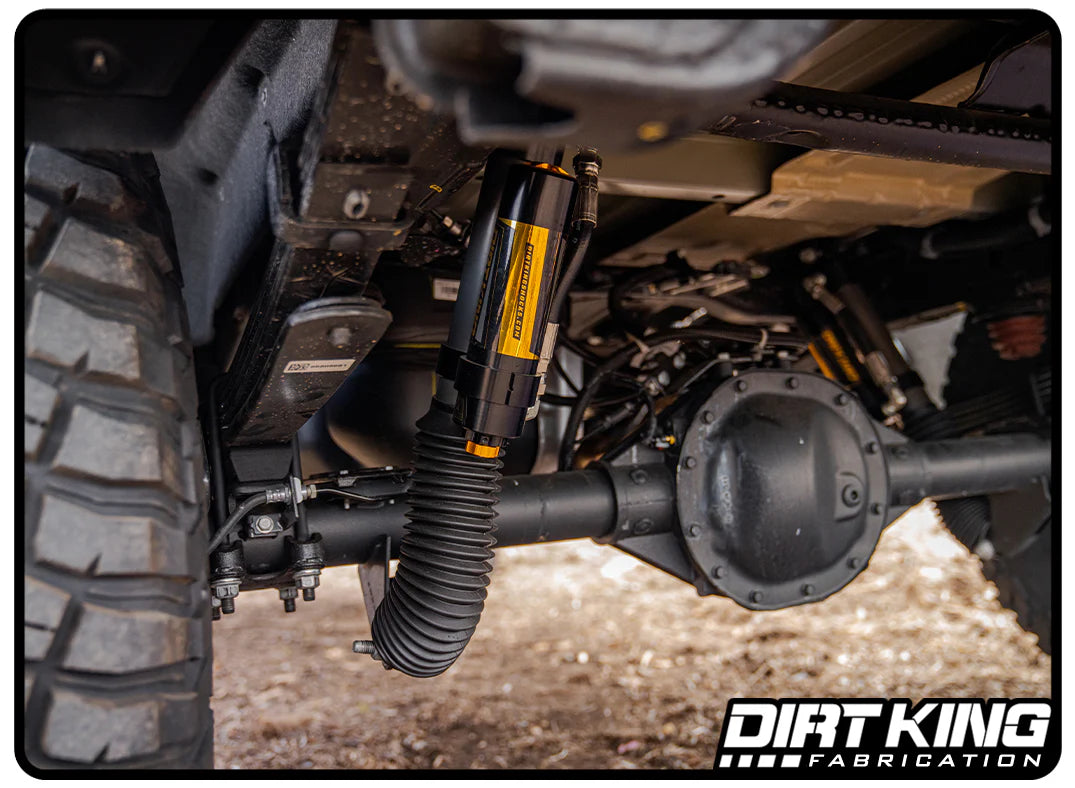

• Dirt King 2.5 DCA Rear Shocks
• All Necessary Mounting Hardware
• Dirt King Sticker Pack
• Installation Instructions
• Trail Boss / ZR2 / AT4 / AT4X models include 1.5" rear lift blocks and u-bolts to replace the factory 2" blocks.
• DCA Remote Reservoirs: Remote reservoir equipped with dual compression adjusters allowing for high-speed and low-speed compression adjustments.
• Optimized Lift and Ride Comfort: With vehicle-specific valving, the shocks are expertly tuned for optimal ride quality on both city streets and rugged trails, all while maintaining a leveled lift.
• Enhanced Suspension Geometry: Upper control arms improve caster settings and pivot angles for better handling and increased articulation.
• Increased Suspension Travel: Allows for higher articulation and improved damping on uneven terrains.
• Durable Construction: The upper control arms are professionally MIG welded using 4130 chromoly tubing and finished with a black powder coat.
• High-Quality Components: Aluminum shock bodies for cooler operation and corrosion resistance.
• Maintenance-Free Bushings: Probearing SilentSpin bushings offer a free-spinning inner sleeve without the need for grease.
• Rebuildable and Serviceable: All components are rebuildable or replaceable; tools and replacement parts are available from Dirt King.
• Direct Bolt-On Replacement: Uses factory mounting locations for straightforward installation.
Compatibility
2019-2025 Chevy Silverado 1500 2WD / 4WD
2019-2025 GMC Sierra 1500 2WD / 4WD
*Requires ARC delete for models equipped with ARC (Adaptive Ride Control also know as MagneRide)
